Outline

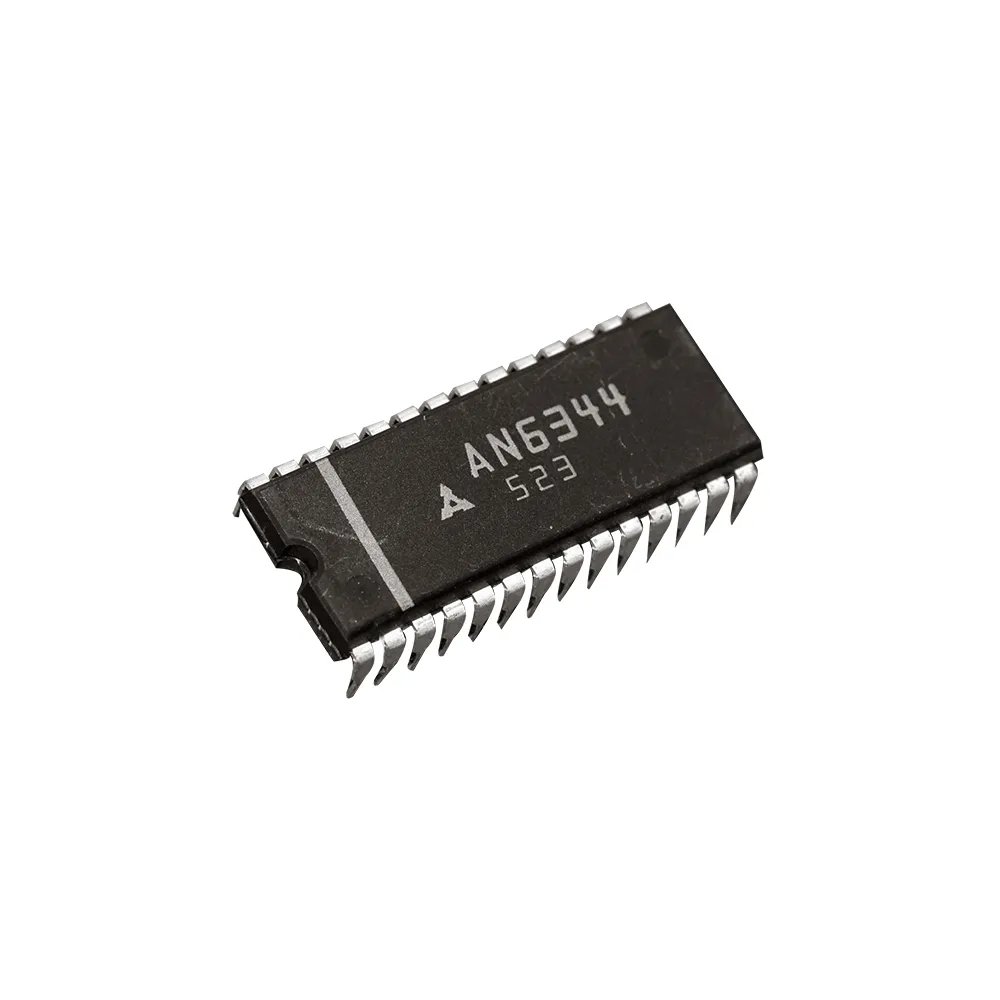

The AN6344 is an integrated circuit designed for VTR’s cylinder servo control

Features:

• The functions consist of:
  • Phase control circuit
  • Speed control circuit
  • Control pass(CTL) recording playback amplifier circuit
  • Capstan PG amplifier circuit
• Sample hold system speed control
• Incorporating recording, playback switching circuit
• Supply voltage either 9V or 12V

Block Diagram

Specifications:

AN6344 Datasheet
