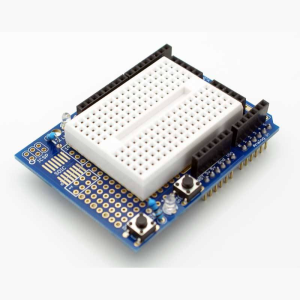

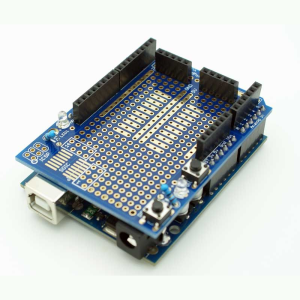

Arduino UNO Prototyping Shield
The Arduino UNO Prototyping Shield is designed to facilitate the development of custom circuits directly atop the Arduino UNO board. It offers a comprehensive prototyping area suitable for both through-hole and surface-mount components, including a 14-pin SMD footprint. Integrated features such as power lines (5V and GND), a solderless breadboard, and convenient access to all 14 Arduino I/O pins streamline the prototyping process. This shield is an essential tool for developers aiming to create and test custom Arduino-based circuits efficiently.
Features
- Comprehensive pinout access to all 14 Arduino I/O pins, including Reset button and ICSP connector.
- Custom circuit space with 14-pin SMD footprint and 20-pin through-hole footprint for mounting both surface-mount and through-hole ICs.
- Power distribution with 5V and GND power rails for consistent power delivery across your custom circuit.
- Includes a small solderless breadboard for quick testing and experimentation without soldering.
- Dedicated prototyping area for soldering components to create your project, making it easy to design and build circuits on a single module.
Specifications
| Attribute | Value |
|---|---|
| Dimensions (LxWxH) | 68.7mm x 53.5mm x 1.6mm |
| Arduino Pinout Access | All 14 I/O pins, Reset button, ICSP connector |
| Footprint Options | 14-pin SMD (50 mils pitch), 20-pin Through-Hole (100 mils pitch) |
| Power Supply | 5V and GND power rails for custom circuit power |
| Mounting Holes | 3 mounting holes for secure attachment |
| Compatibility | Arduino UNO and compatible boards |
| Additional Features | Solderless breadboard for testing, convenient custom circuit integration |
Applications
- Custom Circuit Design.
- Rapid Prototyping.
- Educational Projects.
Package Contents
- 1x Arduino UNO Prototyping Shield.
- 1x 170 Points Solderless breadboard.
