DRV8833 Dual Channel DC Motor Driver Module

The DRV8833 2 Channel DC Motor Driver Module is a compact and efficient dual H-bridge motor driver capable of controlling two DC motors or one bipolar stepper motor. Designed for low-voltage applications, it operates within a 2.7V to 10.8V range, making it ideal for battery-powered projects. With built-in protection features and compatibility with 3.3V and 5V logic levels, this module is perfect for robotics, automation, and DIY electronics projects.

Features:

• Dual-H-bridge motor driver: can drive two DC motors or one bipolar stepper motor.
• Operating voltage: 2.7‌‌ V to 10.8 V.
• Output current: 1.2 A continuous (2 A peak) per motor.
• Motor outputs can be paralleled to deliver 2.4 A continuous (4 A peak) to a single motor.
• Inputs are 3V- and 5V-compatible.
• Under-voltage lockout and protection against over-current and over-temperature.
• Reverse-voltage protection circuit.

Specifications:

• Supply Voltage: 2.7V – 10.8V
• Continuous Current per Channel: Up to 1.2A
• Peak Current per Channel: Up to 2A
• Logic Voltage Compatibility : 3.3V and 5V
• Board Dimensions: Approximately 18 x 15 mm

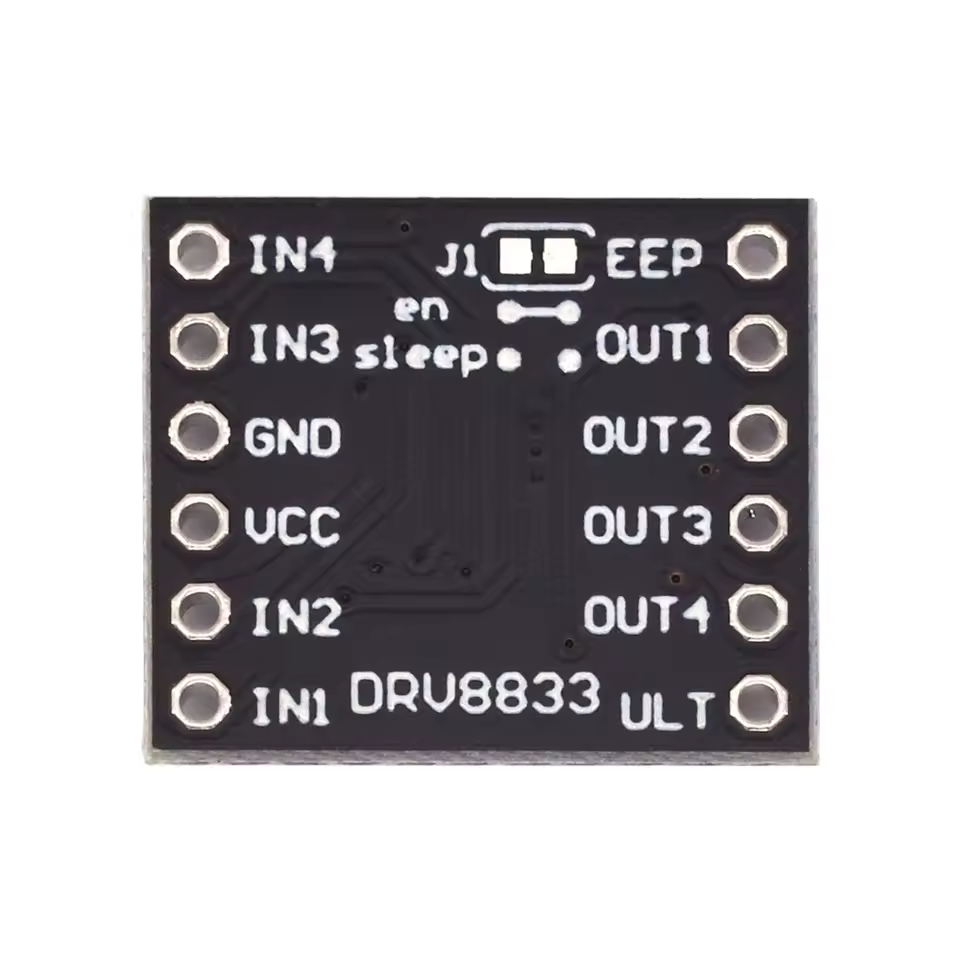

Pin Configuration:

Applications:

• Battery-Powered Toys
• Gaming Machines
• Robotics
• POS Printers

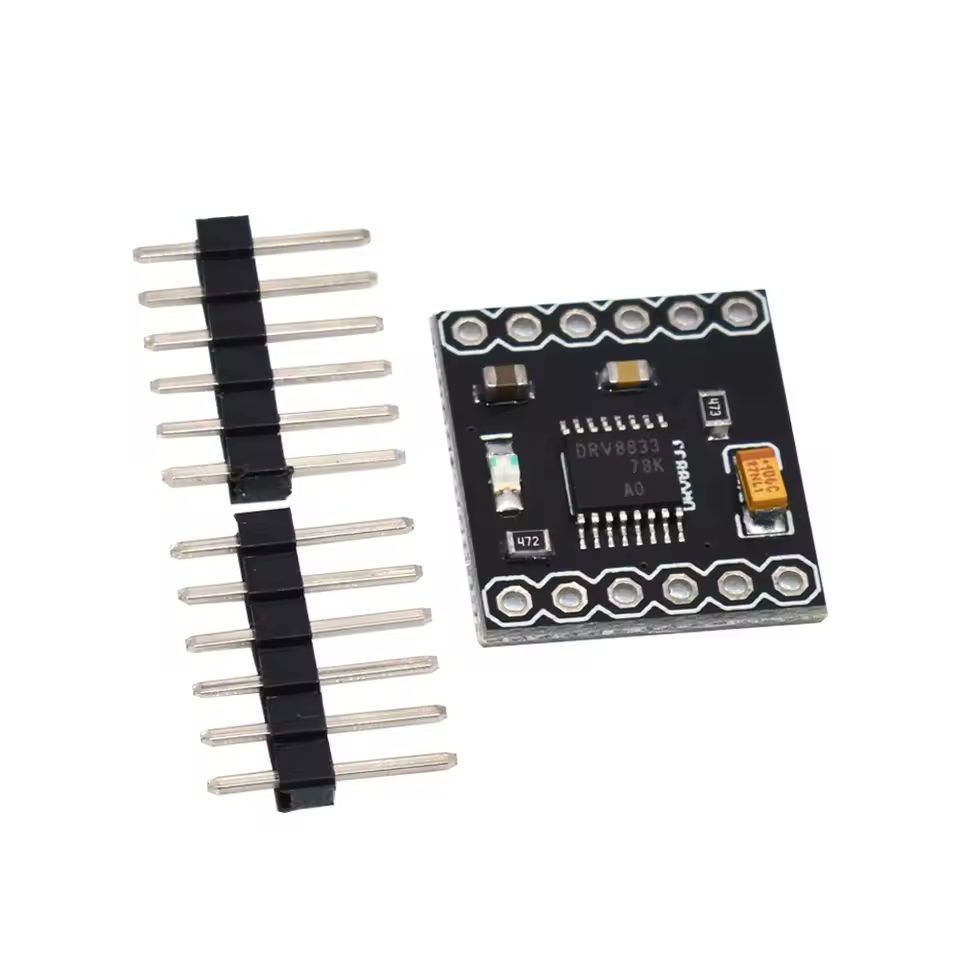

Package Includes:

• 1x DRV8833 Dual Channel DC Motor Driver Module.
• 2x 6-Pin Male Header.

Data sheet:

DRV8833 DC Motor Driver Module
