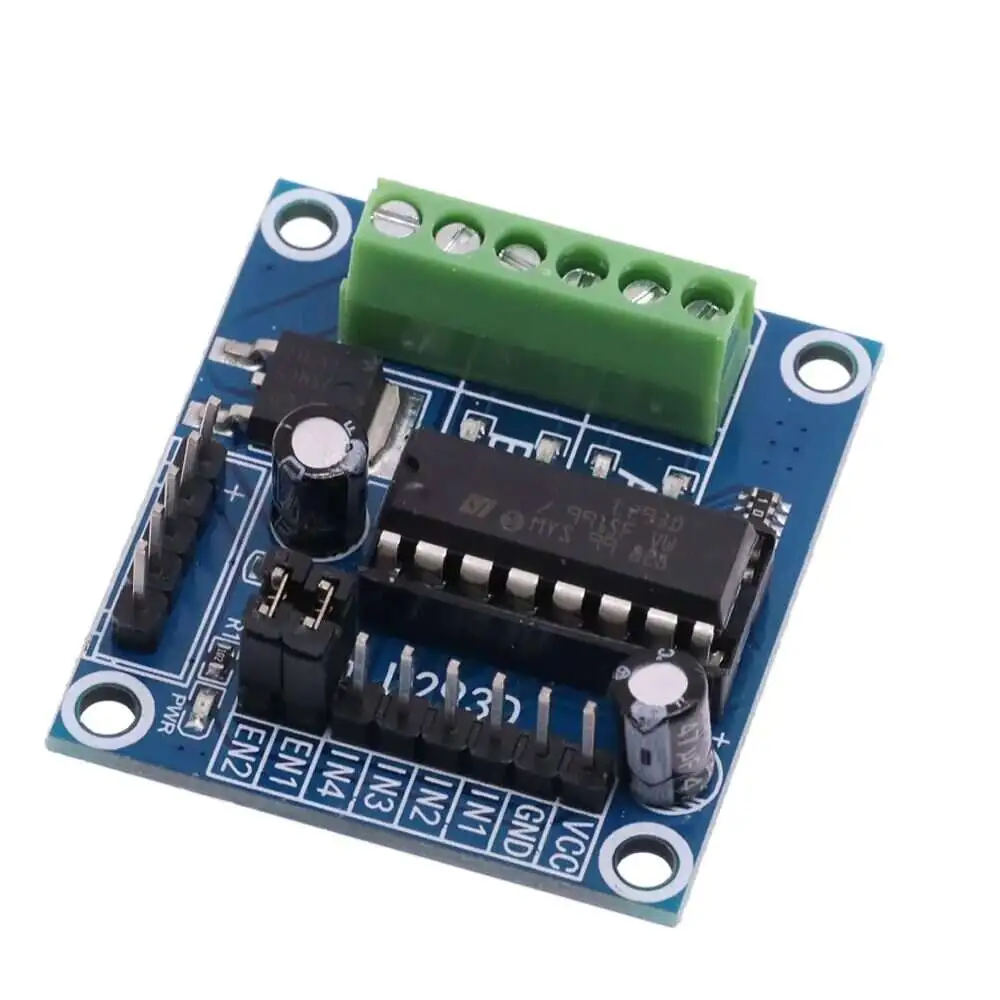

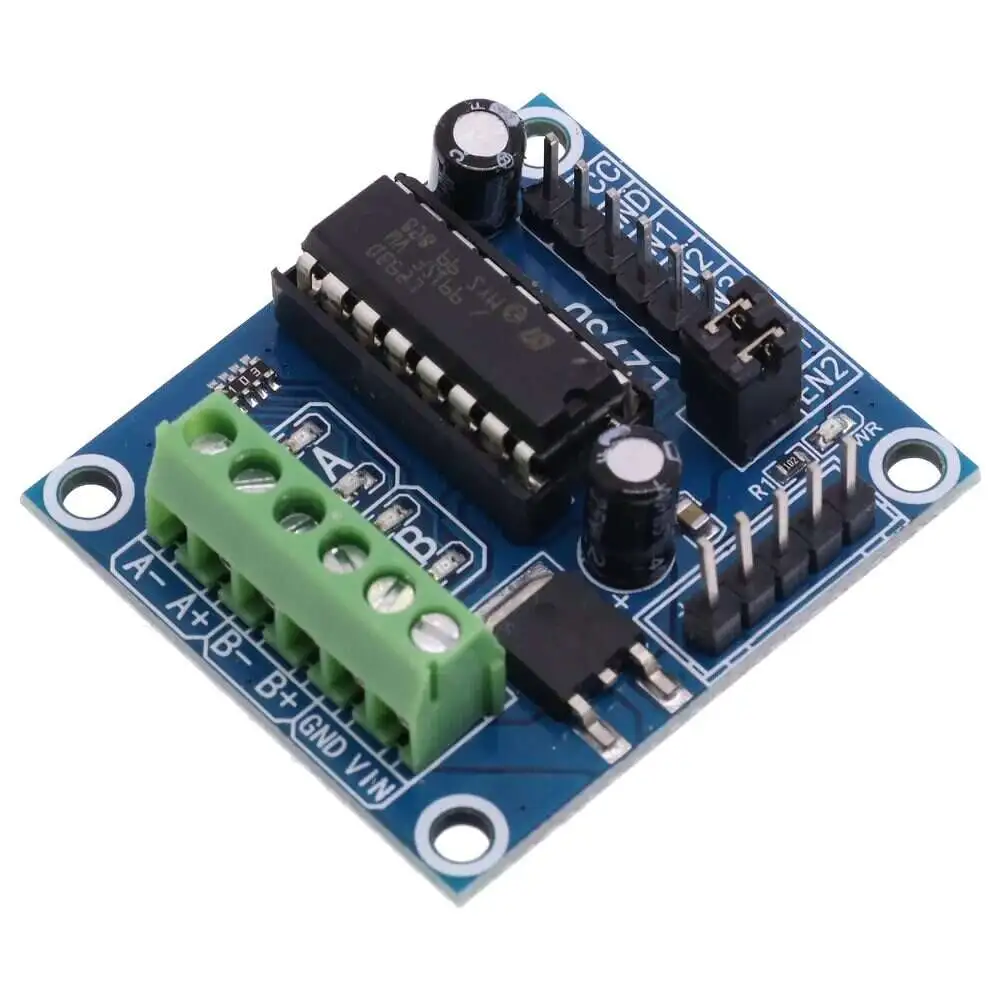

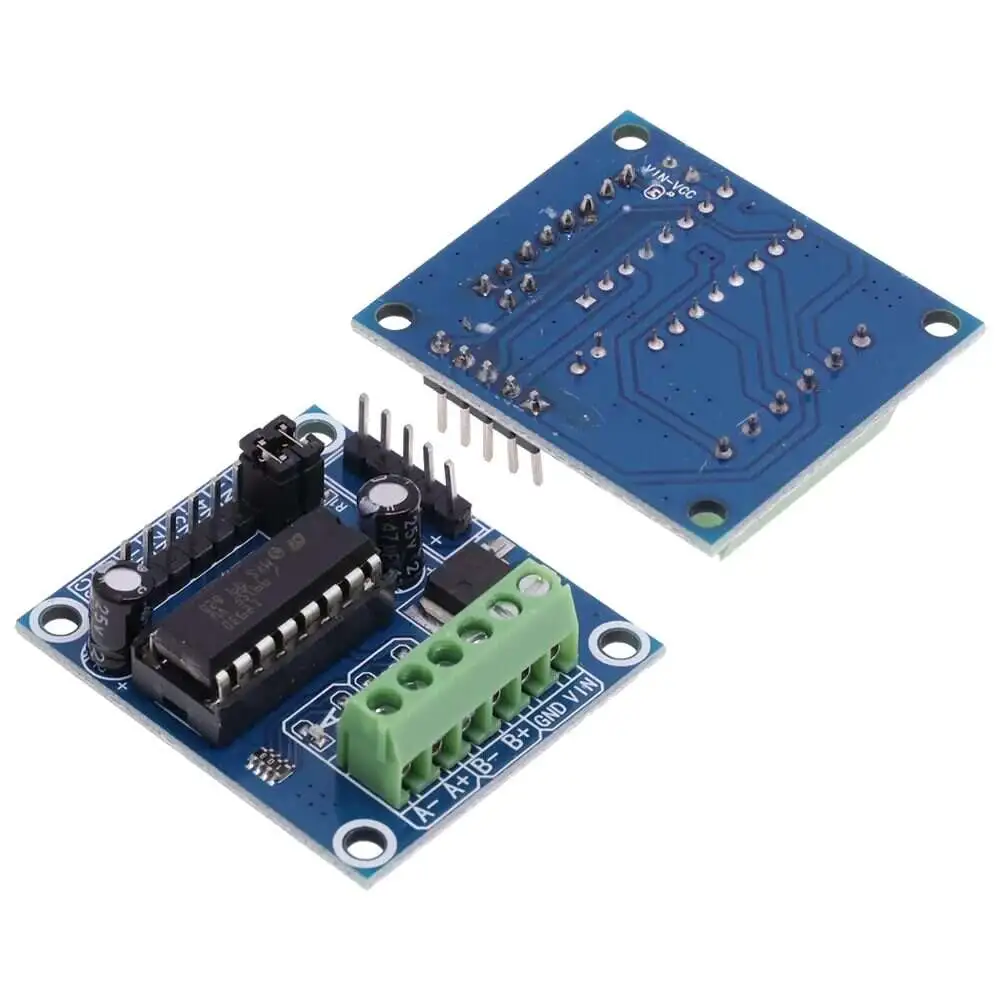

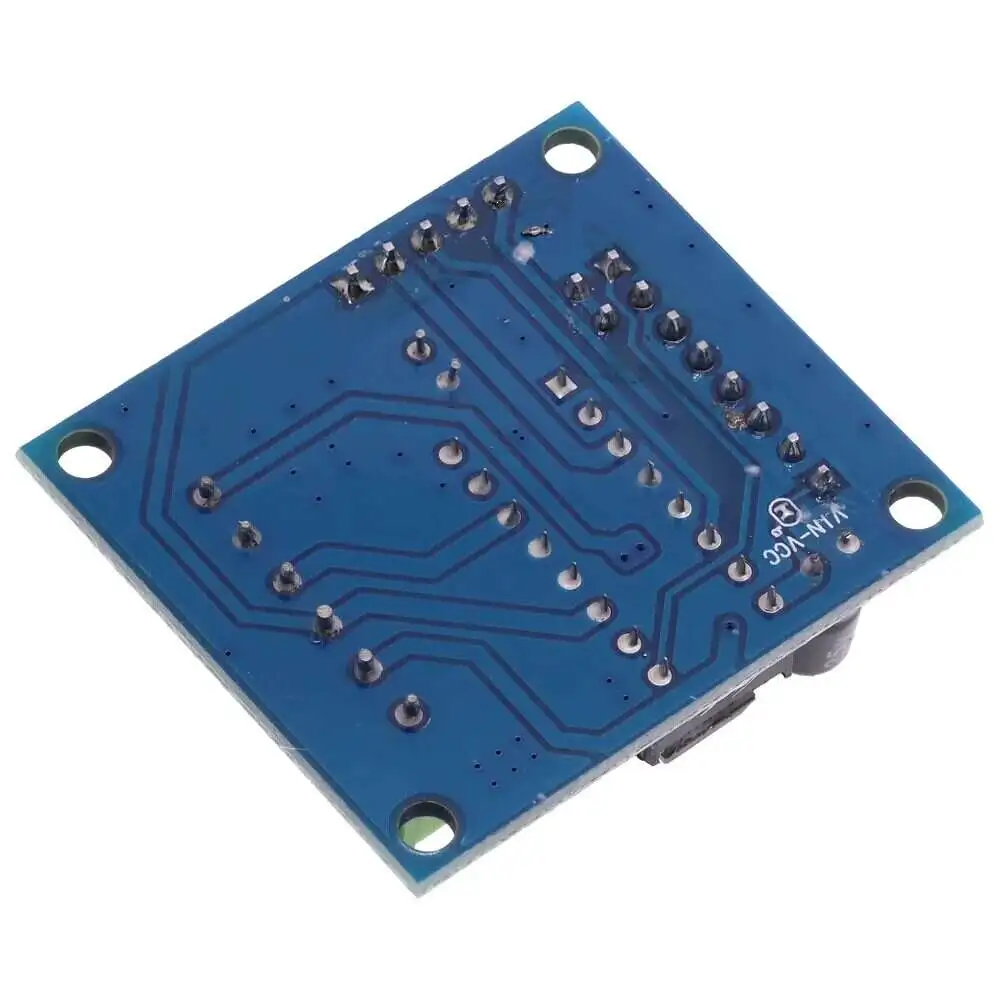

L293D Dual Channel DC Motor Driver Module

L293D is a monolithic integrated, high voltage, high current, 2-channel. With this chip, you can control DC motors and power supplies of up to 24 Volts.  The L293D chip is also known as the H-Bridge. The H-Bridge is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output, e.g. motor.

Features:

• Enable facility
• Overtemperature protection
• Logical “0” input voltage up to 1.5V(High noise immunity)
• Internal clamp diodes

Specifications:

• Model: L293D
• Input Supply voltage: 4.5 ~ 24VDC
• Output Current: 600 mA (per channel)
• Peak Output Current: 1.2A (per channel)
• Switching Frequency: 5 KHz

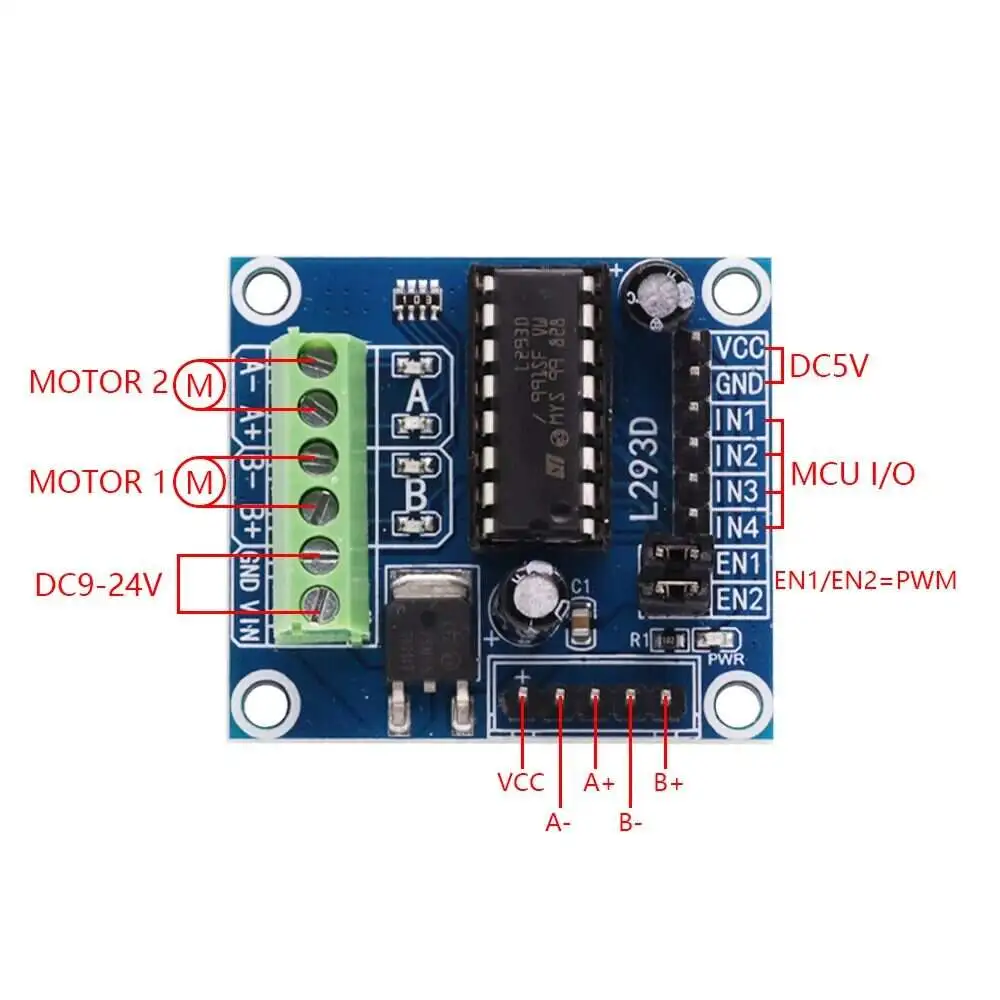

• No. of motors controlled by driver: 2
• Compatible: 2 DC Motors 1 Stepper Motor

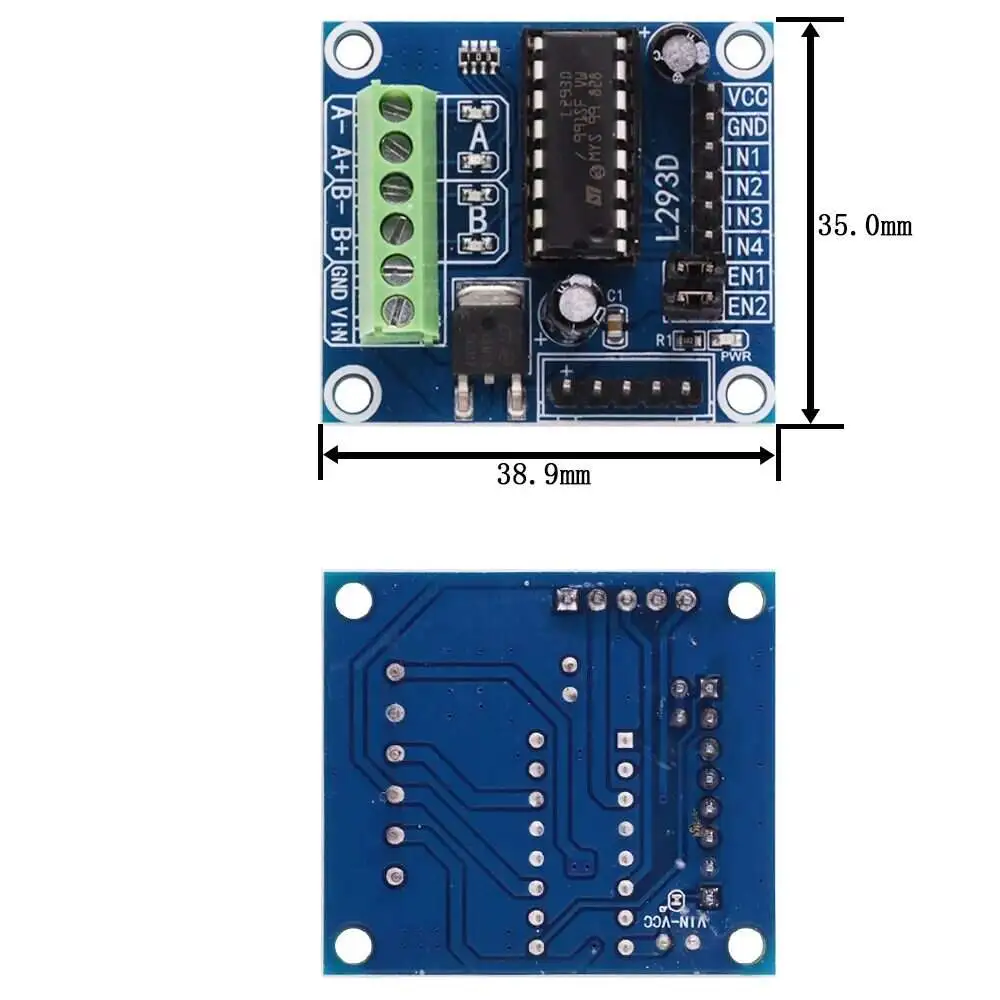

• Length: 38.9 mm
• Width: 35 mm

Applications:

• Can be used to control motors of DIY Robot
• Can be used to control motor speed and direction

Datasheet:

L293D Motor Driver Module
