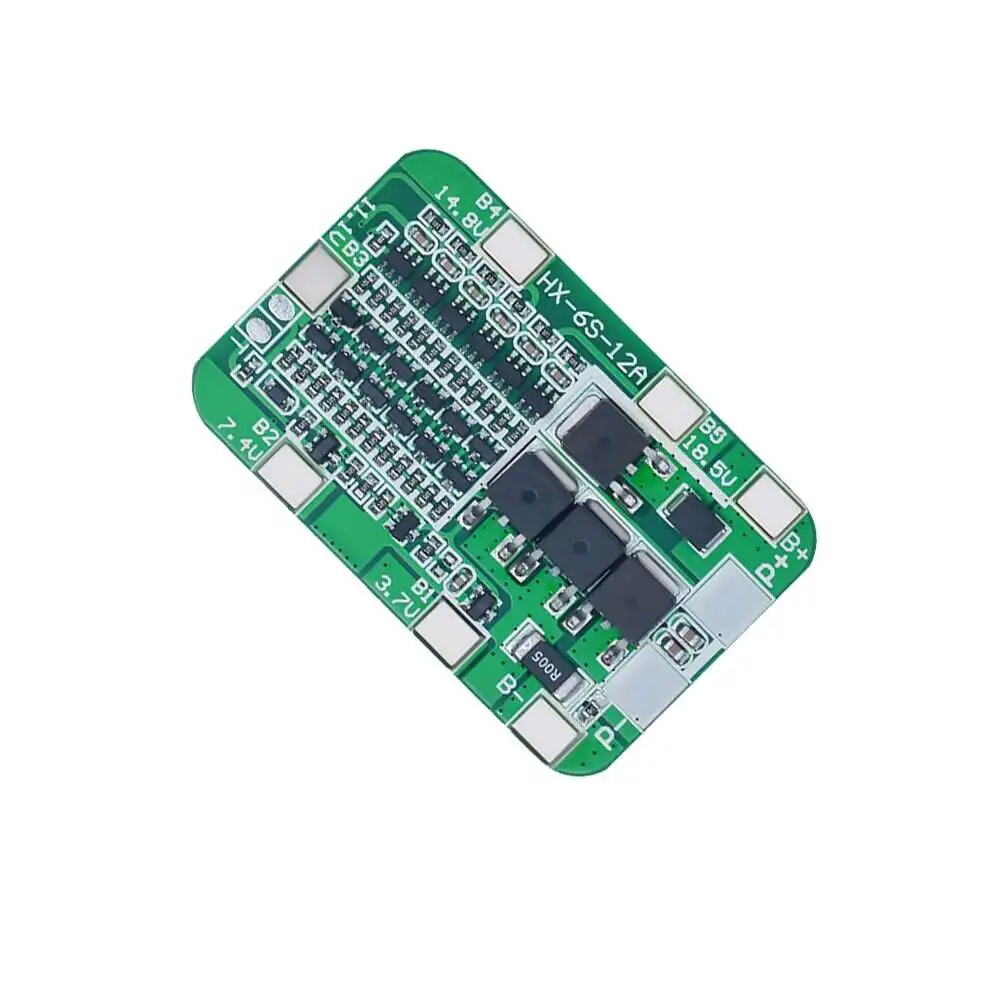

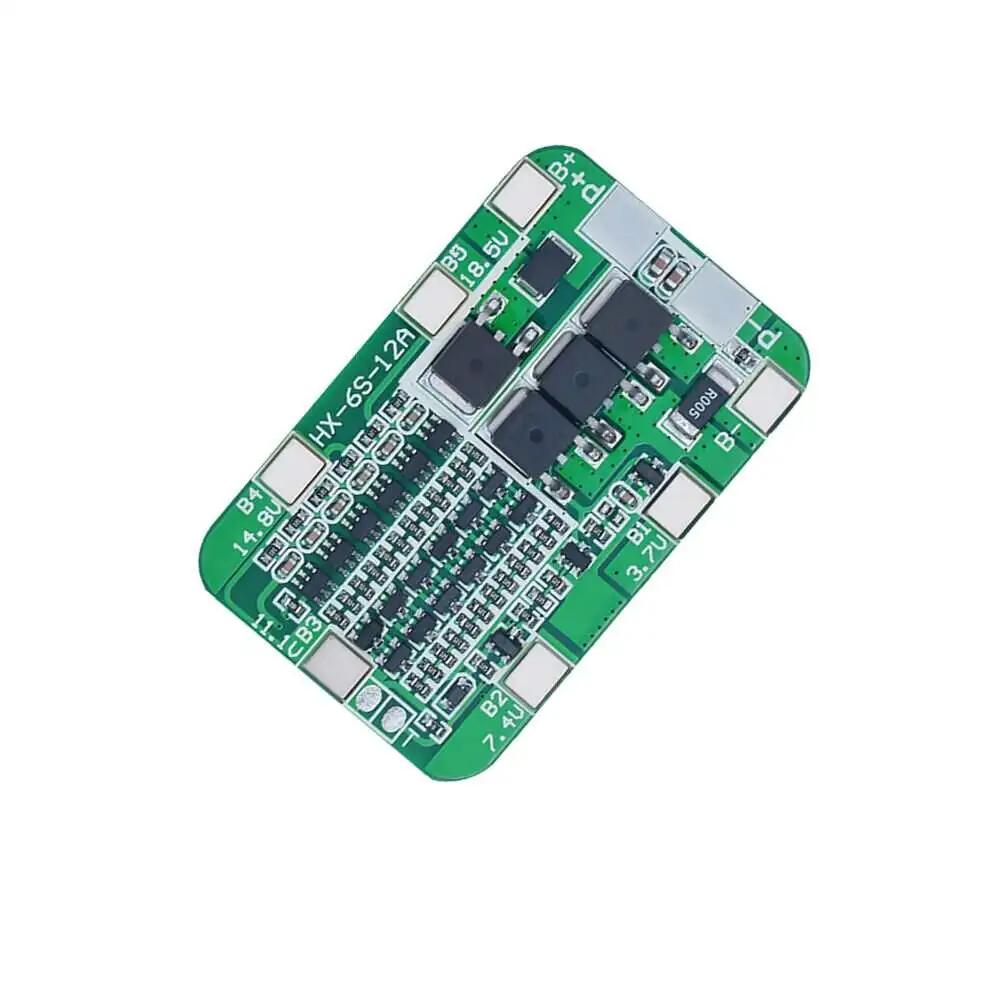

Lithium Battery Charging and Discharging Protection Module BMS 6S 12A 25.2V
Features
- 12A Continuous Current: Suitable for medium-power applications

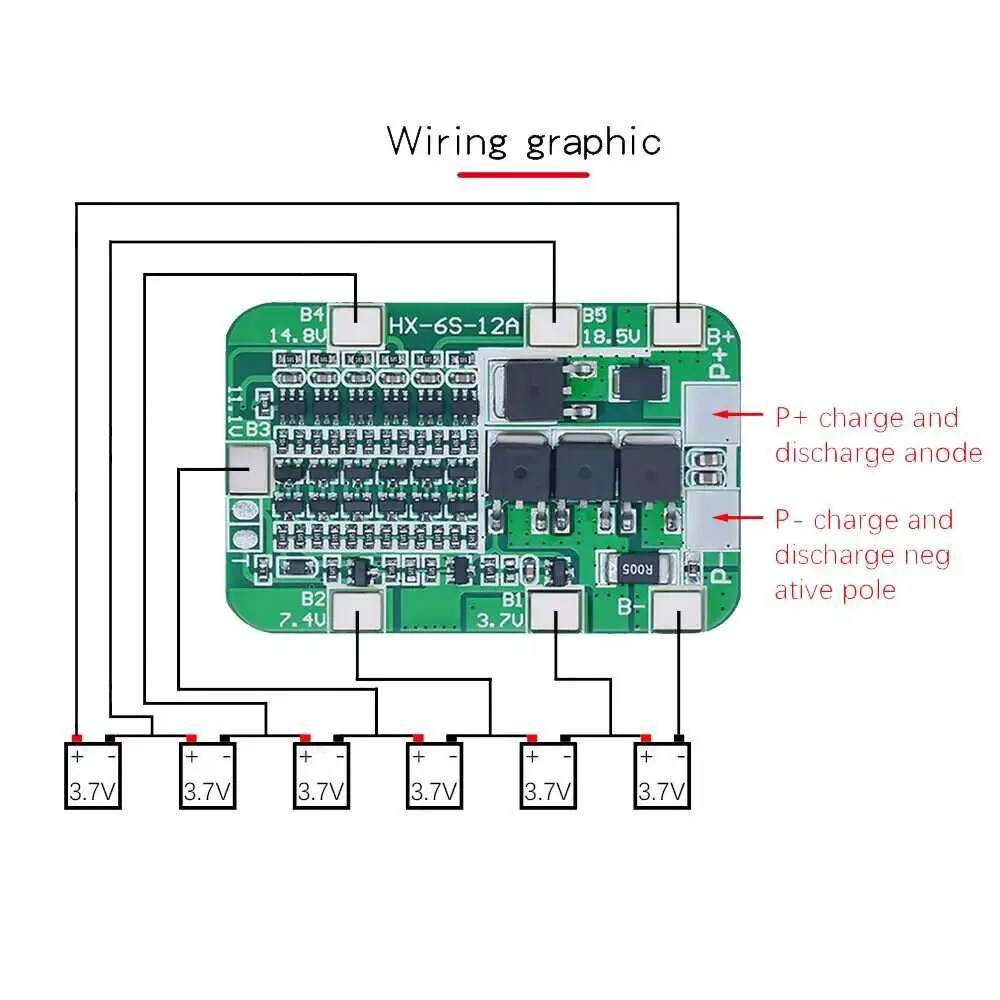

- 6S Configuration: Supports 6-series 18650 lithium battery packs (18V-25.2V)
- Safety Protections: Built-in protection for overcharge, over-discharge, over-current and short-circuits
- Cell Balancing: Passive balancing
- Compact Design: Space-efficient PCB layout
Specifications
| Parameter | Specification |
|---|---|
| Battery Type | 6S Li-ion (18650) |
| Voltage Range | 18V – 25.2V |
| Continuous Current | 12A |
| Peak Current | 15A (≤3s) |
| Overcharge Protection | 4.25 ± 0.05 V / cell |
| Over-discharge Protection | 2.5 ± 0.05 V / cell |
| Balancing Current | 35 ± 5 mA |
| Operating Temperature | -20°C to +60°C |
| Dimensions | 54 × 36 × 4 mm |
Application
- DIY Battery Packs
- E-bike / E-scooter Batteries
- Solar Lighting & Storage
- Power Banks & Backup Supplies
