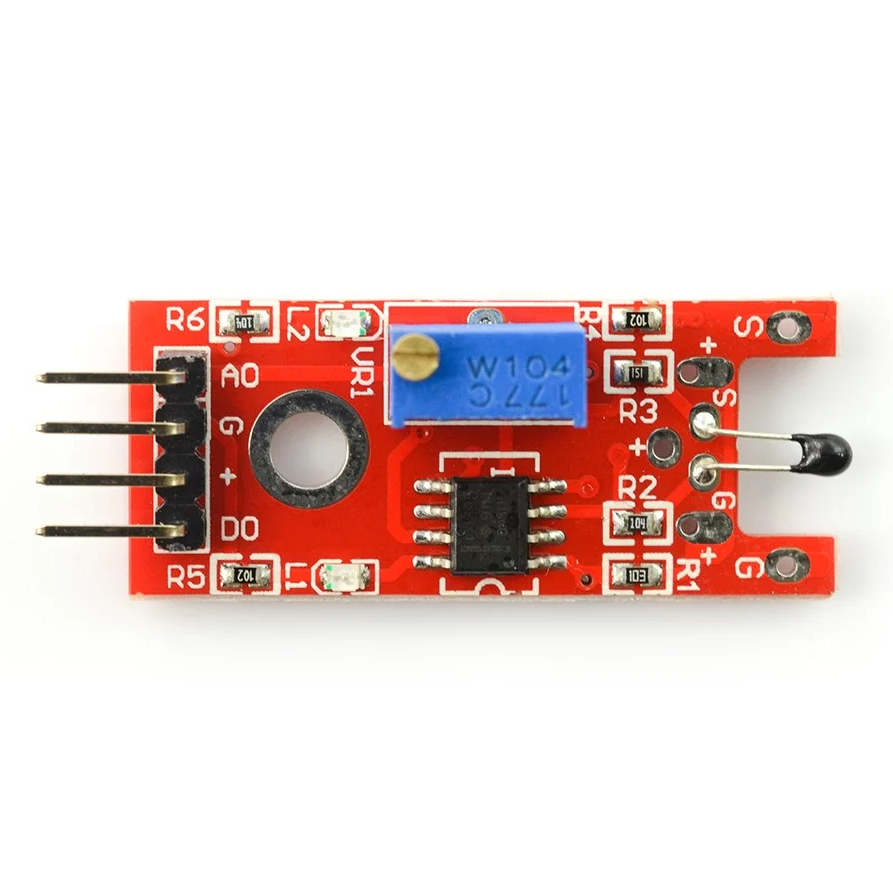

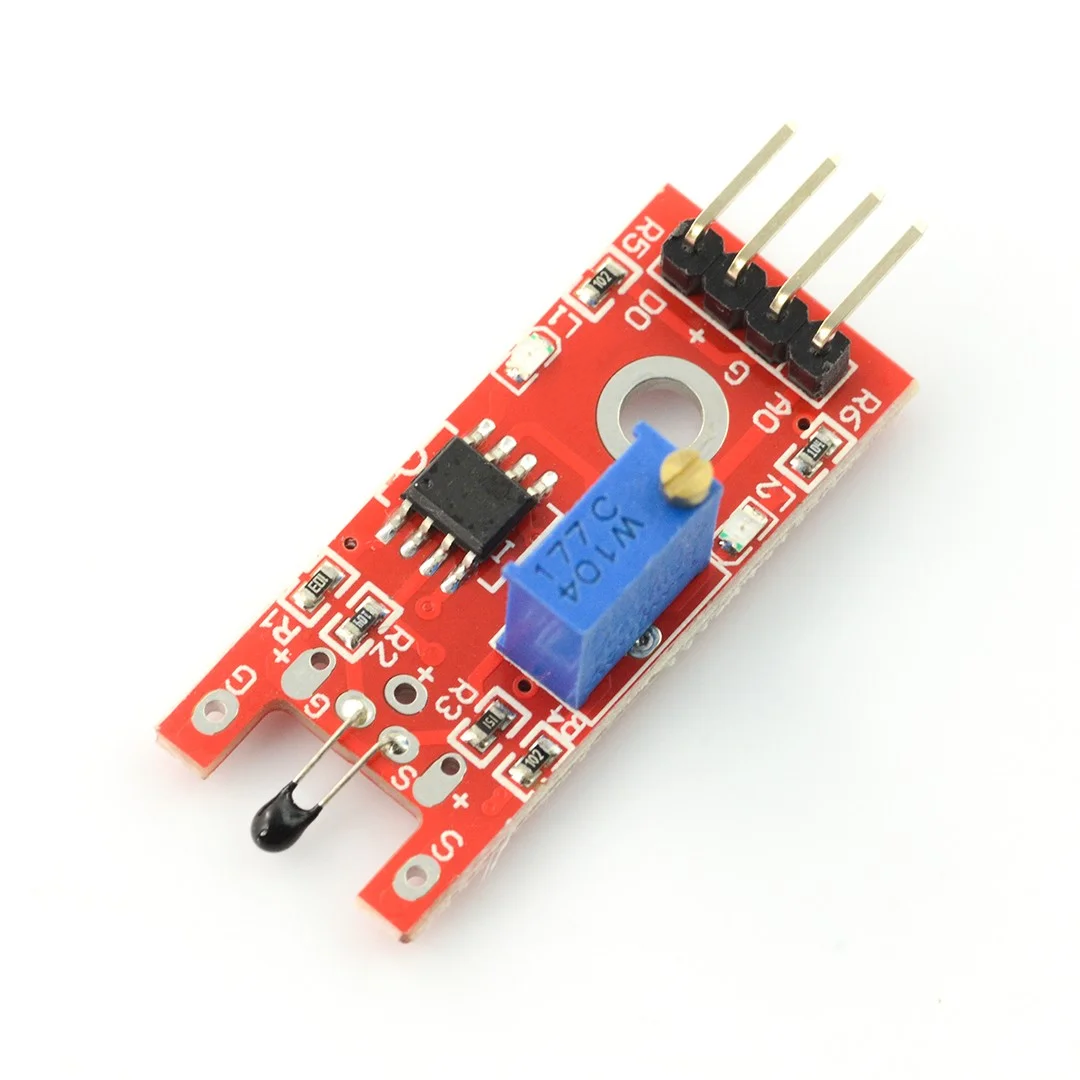

Product Description: temperature sensor – NTC-MF52 thermistor

Module with temperature sensor equipped with a thermistor NTC-MF52. For control, used is an analog or digital output. It detects the temperature in the range from -55°C to 125°C. It is powered with a voltage of 5 V.

Connection of NTC-5MF52 temperature sensor

The sensor works with any microcontroller with digital or analog inputs, including Arduino. To read data, simply connect the power supply and output pin to any input of the microcontroller, and read its status.

Example of connecting to Arduino.

Specification of the temperature sensor NTC-MF52

• Supply voltage: 5 V
• Type: analog/digital
• Thermistor: NTC MF52 3950
• Measurement range: from -55 °C to 125 °C
• Accuracy: +/- 0.5 °C
• PCB Dimensions: 35 x 15 mm
