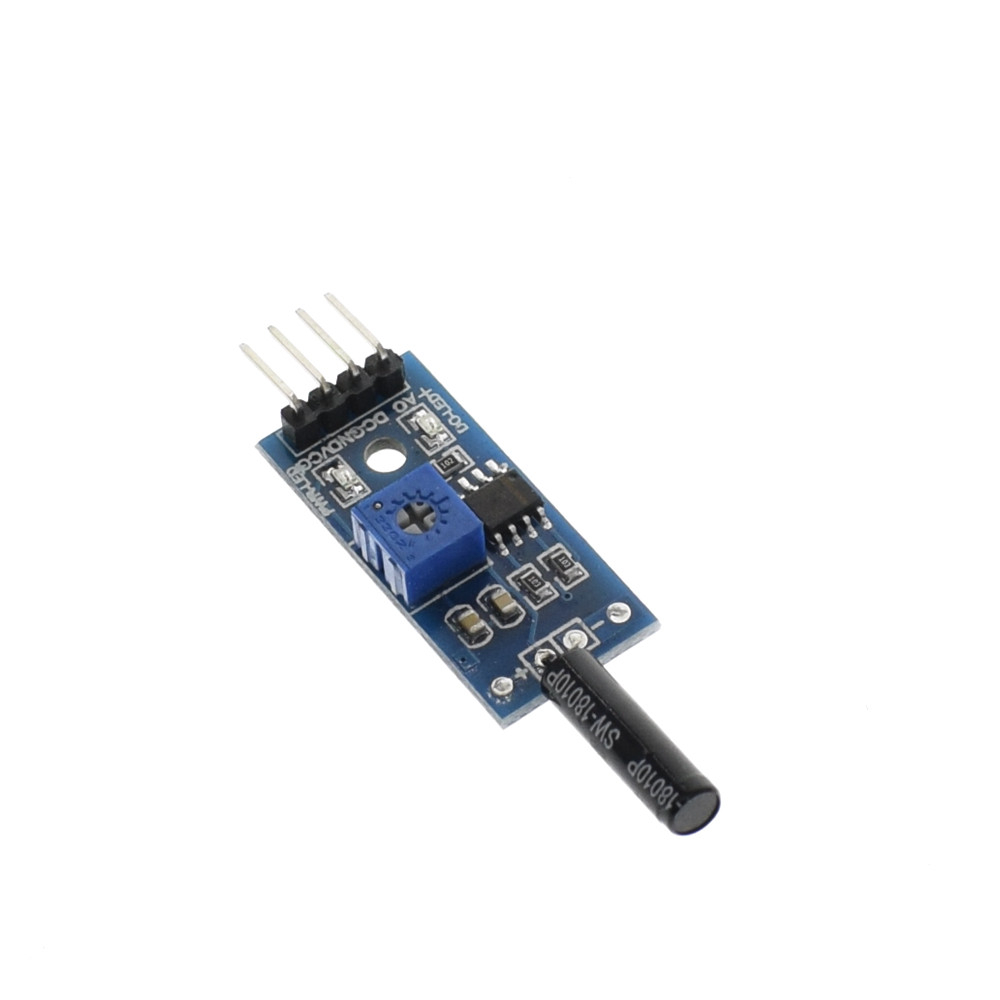

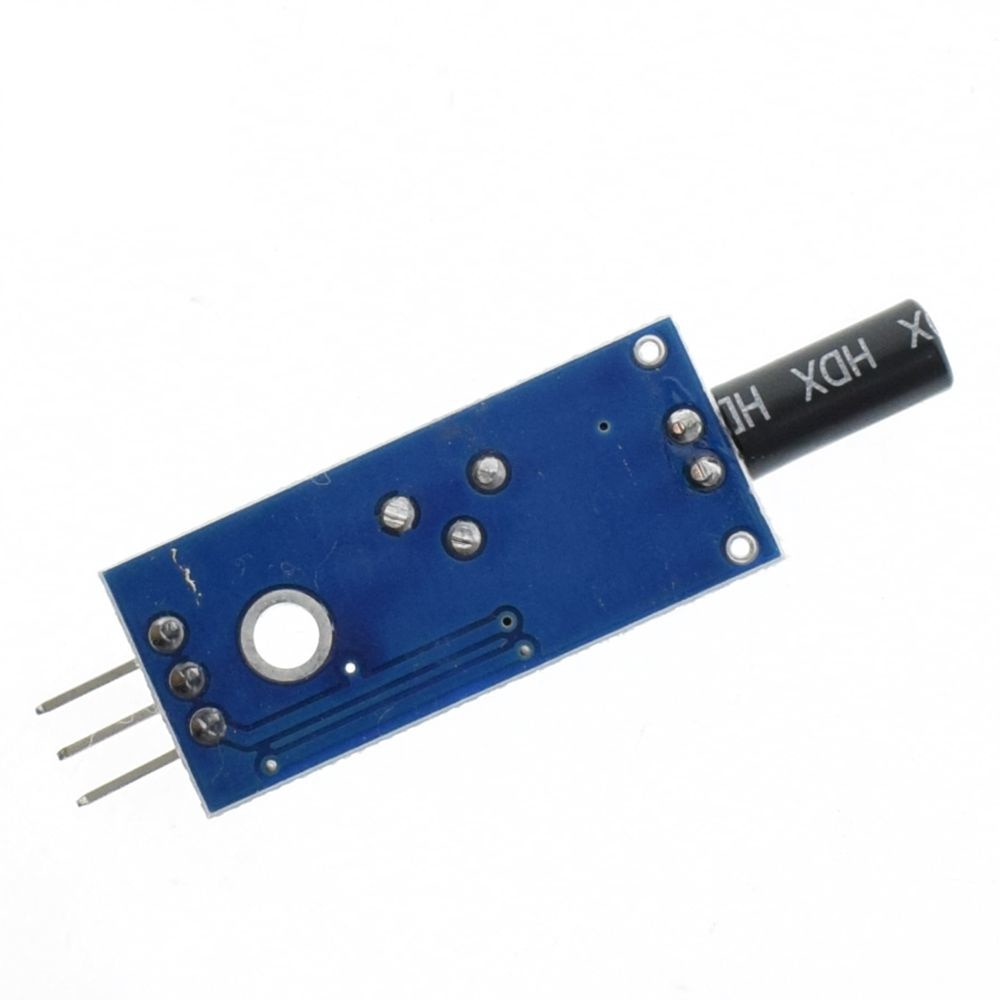

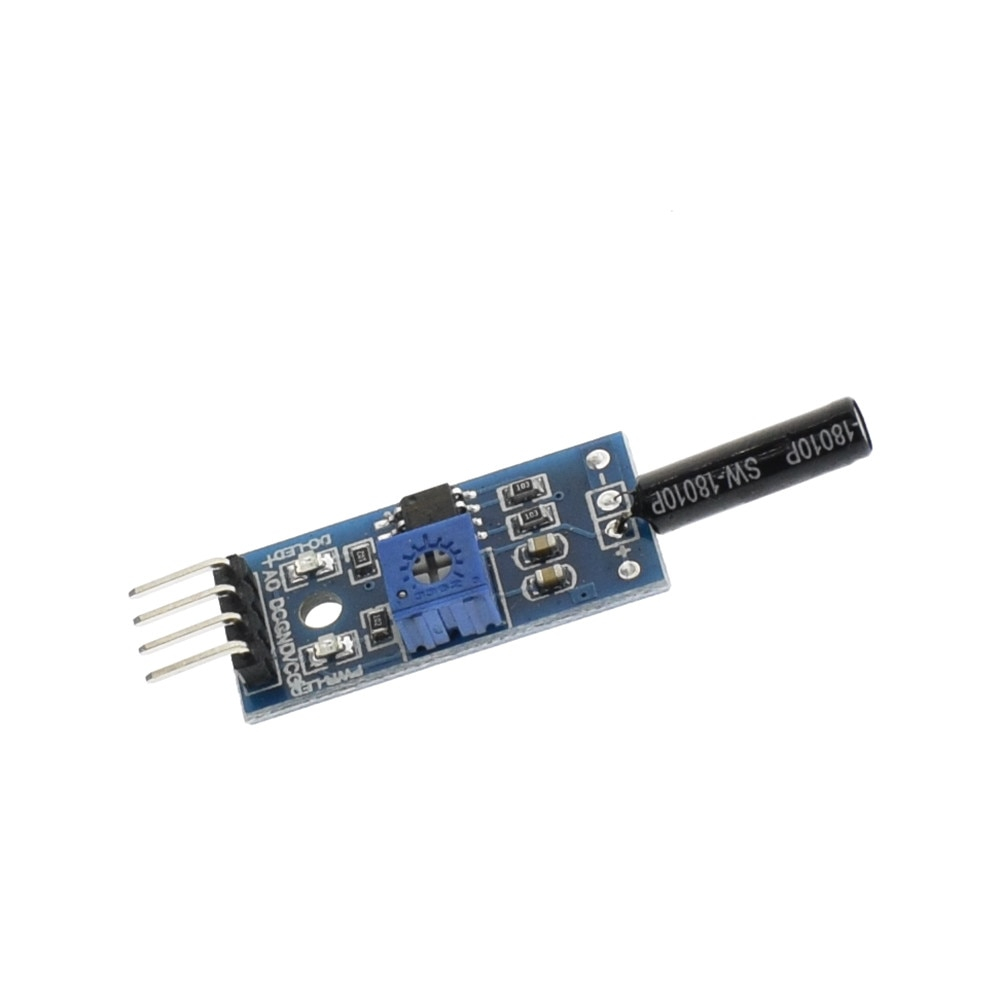

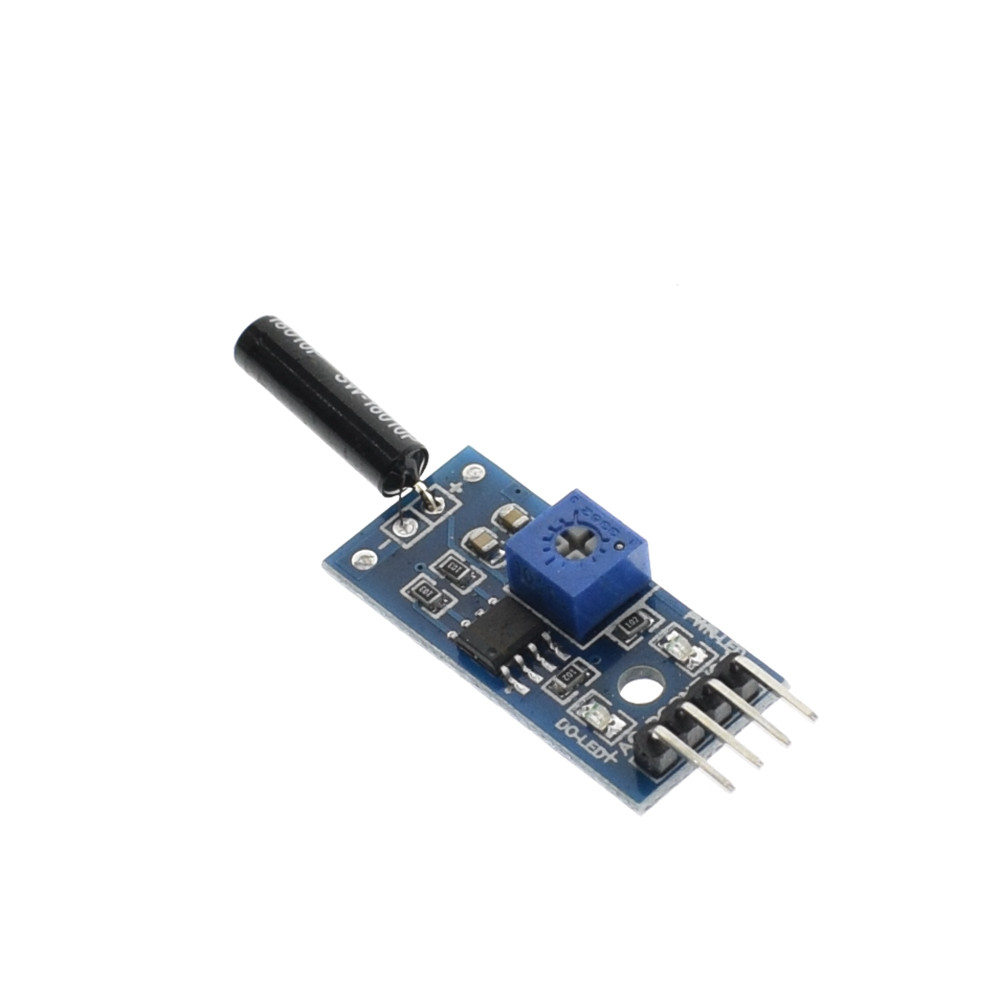

SW1801P Vibration Switch Module 4 Pin

The SW1801P Vibration Switch Module 4 Pin is a compact, high-sensitivity sensor designed for detecting vibrations and tilting movements in a wide range of electronic applications. Built around the SW-18010P vibration sensor, this module utilizes a spring-based mechanism that responds to physical disturbances by closing an internal circuit, triggering a reliable output signal. This functionality makes it an excellent choice for projects requiring precise motion detection, from simple alarm systems to advanced robotics and industrial monitoring applications.

Features:

• High-sensitivity vibration detection using SW-18010P sensor.
• Dual digital and analogue outputs for versatile applications.
• Adjustable sensitivity via onboard potentiometer.
• Operating voltage range of 3.3V to 5V.

Pin Configuration:

VCC: Module power supply – 3.3V to 5V
GND: Ground
D0: Digital Output
A0: Analog Output

Specifications:

Parameter	Value
Operating Voltage	3.3V–5V
Output Type	Digital (DO), Analog (AO)
Comparator	LM393
PCB Dimensions	30mm x 14mm
Sensor Type	SW-18010P

Applications:

• Theft alarm systems for detecting unauthorized access.
• Smart car vibration detection for collision or terrain monitoring.
• Electronic building blocks for educational and prototyping projects.
• Motion detection in security systems for enhanced protection.
• Vibration monitoring in industrial equipment for maintenance.

Package Include:

• 1 x SW1801P Vibration Switch Module 4 Pin.
