USB Type-A Female to Pin Header

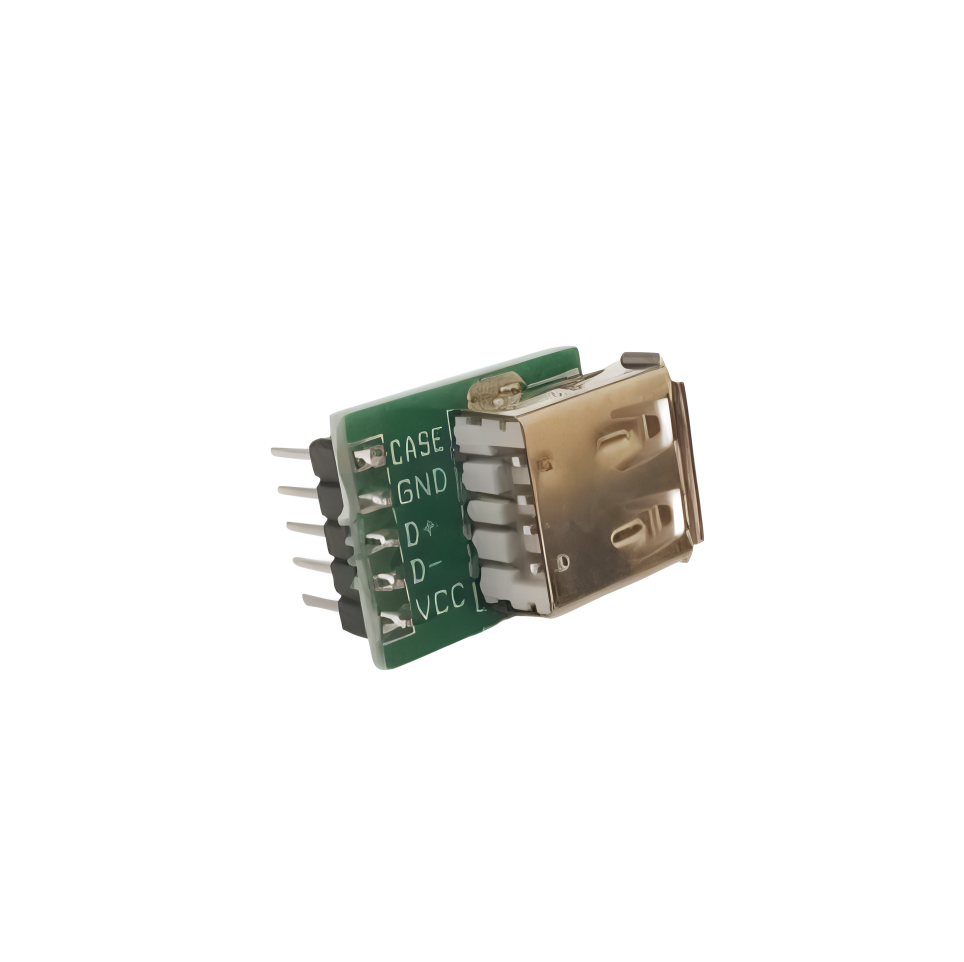

The USB Type-A Female to 5-Pin Header breakout board provides a compact, panel‑mountable interface for USB connections. It features a USB Type A socket that routes the VCC, D−, D+, GND, and shield (case) lines to a clearly labeled 5‑pin 2.54 mm header. Ideal for prototyping, embedded designs, or custom enclosures, this board ensures reliable, solderless wiring and simplifies USB power and data access.
Features
- USB Type A female connector.
- Breaks out VCC, D−, D+, GND, and shield (case) to a 5‑pin 2.54 mm header.
- Silkscreen labels on PCB for each pin number and function.
- Compact PCB footprint for tight installation spaces.
Specifications
| Parameter | Value |
|---|---|
| Connector | USB Type A female |
| Header Pins | 5‑pin, 2.54 mm pitch |
| Pins Routed | +5 V, D−, D+, GND, Case |
| PCB Dimensions | 22mm x 17mm |
Applications
- Adding USB Type A ports to custom enclosures and panels.
- Breadboard‑friendly USB power and data access for microcontroller projects.
- Laboratory and test setups requiring easy USB signal routing.
- Embedded systems and prototyping where standard USB connectivity is needed.
Package Contents
- 1x USB Type-A Female to Pin Header.
