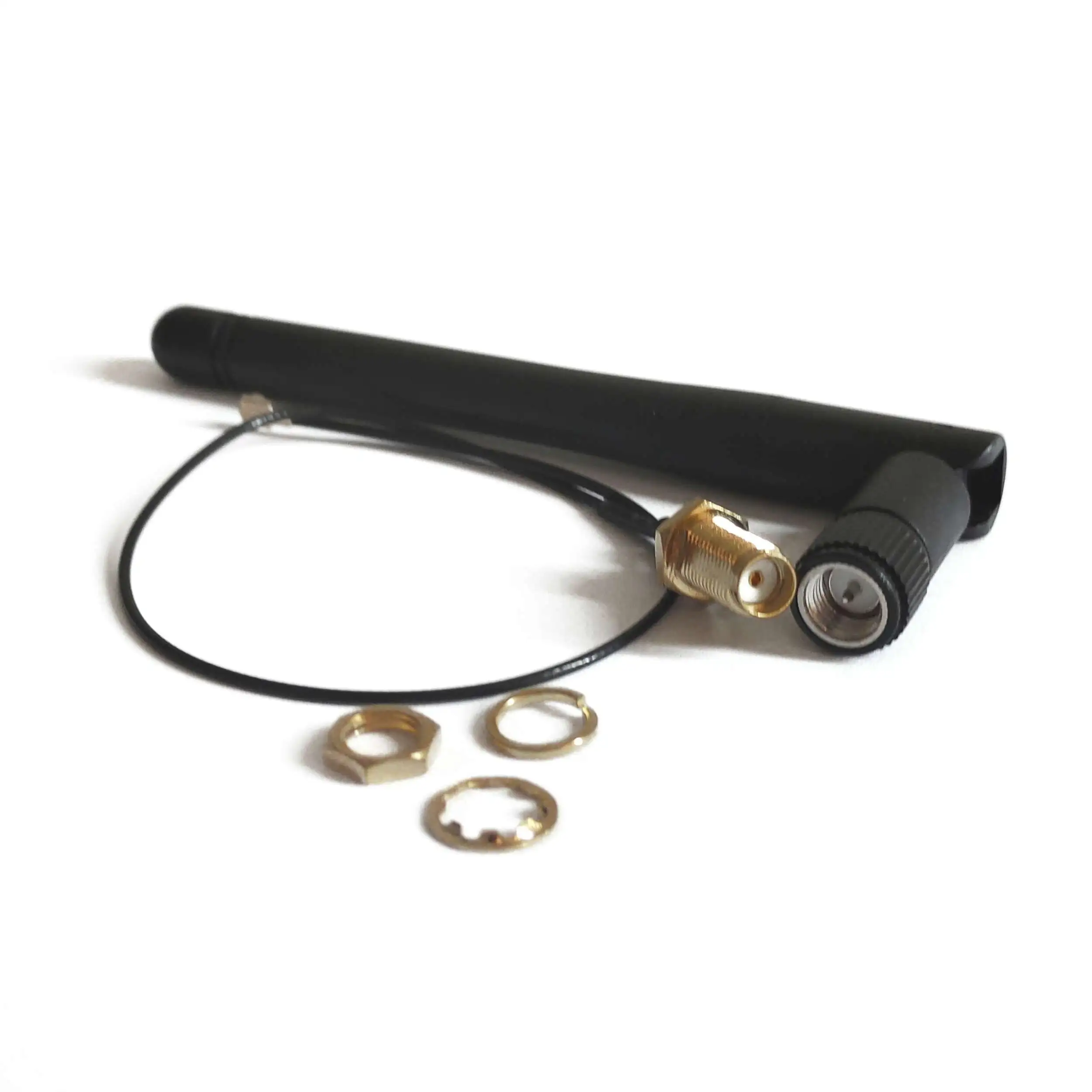

Product Description: External antenna 2400-2500Mhz 2-3dBi with SMA connector
Outdoor antenna with SMA connector. It operates at 2400-2500 MHz. The gain of the antenna is 2-3 dBi, and its impedance is 50 ohm. The product is 109 mm long, in black.
Technical specifications of Antenna
- Item Name: Antenna
- Material: ABS
- Interface Type: Male
- Maximum Power: 50W
- Frequency Range: 2400-2500MHz
- Gain: 2-3dB
- Input Impendence: 50Ω
- V.S.W.R: ≤1.5
- Dimensions: 109 x 10mm ±1 mm
Specifications:
- Connector: IPX1 IPEX1 to RP-SMA Female jack
- Connectors (A) SMA Female Jack
- Connectors (B) IPX1 plug
- Cable type: RG178
- Length: 20 cm
Application areas:
- WIFI module
- Network card
- Computer desk
- iPad
- Airplane model remote control
- Bluetooth
- Network monitor
- Wireless camera
- Intelligent household
- Network set-top box
- Wireless router
